Check valves are used throughout fluid-handling equipment to control the direction of flow. Their basic job is simple: allow fluid to move one way and help stop it from moving backward.

In hydraulic applications, that one-way function can be important. Hydraulic circuits often rely on controlled fluid flow to protect components, prevent unwanted reverse flow, and reduce pressure shifts that can interfere with equipment operation.

Inline check valves may be used in hydraulic applications, but the fit depends on the circuit details. An inline check valve may be appropriate when its pressure rating, material, flow capacity, and internal design meet the equipment's requirements.

JAECO inline check valves are built for fluid control, so the key is confirming fit based on the specific hydraulic fluid, pressure, viscosity, flow rate, and layout.

What Does a Check Valve Do in a Hydraulic Application?

A check valve is a one-way valve. When fluid moves in the intended direction, pressure opens the valve and fluid passes through. When pressure drops or attempts to reverse, the internal element returns to the closed position to help stop backflow.

In a hydraulic application, a check valve may help:

• Keep fluid moving in the intended direction
• Reduce unwanted reverse movement
• Help protect pumps, lines, or connected components
• Assist with pressure control in the circuit
• Preserve metering integrity where directional fluid delivery matters

Are Inline Check Valves the Same as Hydraulic Check Valves?

Not necessarily. A hydraulic check valve usually refers to a valve selected for hydraulic service based on pressure rating, fluid compatibility, cracking pressure, connection type, and circuit layout.

An inline check valve describes the valve layout. Inline valves are installed directly in the line so fluid passes through the valve body in a straight-through path. JAECO inline check valves are built to prevent backflow and help preserve metering integrity in fluid-handling equipment.

In other words, hydraulic check valve refers to the use case, while inline check valve refers to the valve configuration. An inline valve may be appropriate for hydraulic service, but the specific application determines whether it is the right fit.

How Inline Check Valves Help Control Hydraulic Flow Direction

Hydraulic circuits can be sensitive to reverse movement. If fluid moves backward, even briefly, it may affect pressure balance, place stress on components, or interfere with controlled fluid delivery.

An inline check valve helps by closing when fluid attempts to reverse. This keeps movement directional and may reduce the chance of backflow reaching pumps, meters, or connected equipment.

For hydraulic setups tied to metering or injection, this can be especially useful. Check valves help prevent backflow and preserve metering integrity, which matters when equipment depends on controlled dosing or directional fluid movement.

Key Factors When Selecting Check Valves for Hydraulic Applications

When evaluating check valves for hydraulic applications, selection should start with the circuit requirements. The valve must fit the fluid, pressure, flow rate, viscosity, and installation layout.

Important factors include:

• Pressure requirements
• Flow rate
• Hydraulic fluid compatibility
• Fluid viscosity
• Cracking pressure, when using a spring-loaded design
• Installation orientation
• Valve material
• Service or inspection access
• Spring-loaded vs. no-spring construction

Pressure and flow rate should be reviewed together. A valve that is too restrictive may create unwanted pressure drop, while a valve that does not close as needed may not provide the backflow control the circuit requires.

Fluid compatibility is equally important. Hydraulic fluids vary, and the valve body, internal components, and sealing materials should be checked against the specific fluid in the line.

Pressure, Flow Rate, and Pressure Drop

Hydraulic applications often involve higher pressure than many general liquid lines. That does not automatically rule out an inline check valve, but it does make valve selection more specific.

Pressure rating, valve size, connection type, and expected flow rate all affect whether a check valve is a practical fit. Pressure drop is also part of that decision, especially in circuits where added restriction could affect equipment function.

The goal is to select a valve that can handle the circuit’s pressure and flow demands while still closing when reverse movement occurs.

Fluid Compatibility and Viscosity

Hydraulic fluid compatibility is another key factor. The valve body, internal components, and sealing materials need to match the fluid being moved, including any additives, temperature exposure, or surrounding plant conditions.

Viscosity can also change how a valve behaves. Thinner hydraulic fluids may move through a standard inline check valve when pressure and materials align. Heavier or slower-moving fluids may call for a more specialized design.

JAECO high-viscosity check valves are built for thicker fluids that can challenge standard valve designs. These valves use controlled ball travel, pinned internal components, and spring or no-spring options to help address sticking, hesitation, or incomplete seating in heavier media. For hydraulic applications involving thicker fluids or low-velocity movement, this type of construction may be a useful option.

Spring-Loaded vs. No-Spring Inline Check Valves

Hydraulic applications may also require a decision between spring-loaded and no-spring check valve designs.

A spring-loaded check valve uses a spring to push the internal element back to the closed position. This can help when faster closure is needed or when the valve must function in an orientation where gravity alone may not return the sealing element to the seat.

A no-spring ball check valve relies more on flow direction, reverse pressure, or gravity-assisted closure. This design can be a practical choice in compatible applications where lower opening resistance or fewer internal components are preferred.

In general, spring-loaded vs. no-spring check valves comes down to whether the application needs defined cracking pressure, faster closure, gravity-assisted seating, or lower opening resistance.

Material Selection for Hydraulic Use

Material selection is critical in hydraulic applications because the valve must withstand the fluid, pressure, temperature, and surrounding environment.

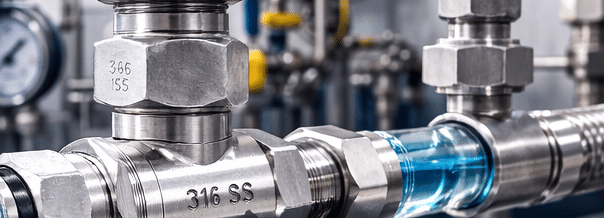

JAECO offers check valves in materials such as 316 stainless steel, Alloy 20, PVC, and CPVC, depending on the valve type. Stainless steel is a strong option when strength, corrosion resistance, and long service life are priorities, while Alloy 20 is suited for aggressive chemical exposure. For corrosion concerns, comparing 316 vs. 304 stainless steel check valves can help clarify material selection. PVC and CPVC may be appropriate only when pressure, fluid compatibility, and temperature requirements allow.

Where a JAECO Inline Check Valve Can Make Sense

A JAECO inline check valve can make sense for a hydraulic application when:

• The hydraulic fluid is compatible with the valve material
• Pressure and flow rate fall within the valve’s capabilities
• The internal design provides the needed opening and closing behavior
• Backflow control is needed in an inline layout
• Durable construction and technical selection support are priorities

Some hydraulic circuits may require a specific hydraulic rating, certification, or specialized valve design.

Confirm Fit Before Using Inline Check Valves in Hydraulic Applications

Inline check valves can be used in hydraulic applications when the valve design, material, pressure capability, and fluid compatibility align with the circuit’s requirements. The best choice depends on how the valve will function in the actual equipment, including fluid type, pressure, flow rate, viscosity, and layout.

JAECO brings decades of fluid control experience to check valve selection. With U.S.-built products, durable materials, and application-specific support, JAECO can help engineers, maintenance teams, and system designers determine whether an inline check valve is appropriate for a hydraulic application.
