Poppet check valves

Spring Check Valves for Reliable Backflow Control & Metering Accuracy

JAECO spring check valves provide reliable, pressure-assisted backflow prevention for metering pumps and chemical injection systems. Designed for consistent performance and precise flow control, these inline spring-loaded check valves help maintain system pressure, protect equipment, and improve dosing accuracy.

Available in ball and poppet-style configurations, JAECO spring check valves are compact, durable, and engineered for demanding industrial applications.

Check valves

Shop Spring-Loaded Check Valves


ball check valve

Single Ball Spring-Loaded Check Valve

Compact inline spring check valve built for reliable performance in metering pump and injection line applications.

High Viscosity Spring-Loaded Check Valve

A spring assisted check valve for thicker liquids, available 1/4 inch through 1 inch with 10 PSI cracking pressure.

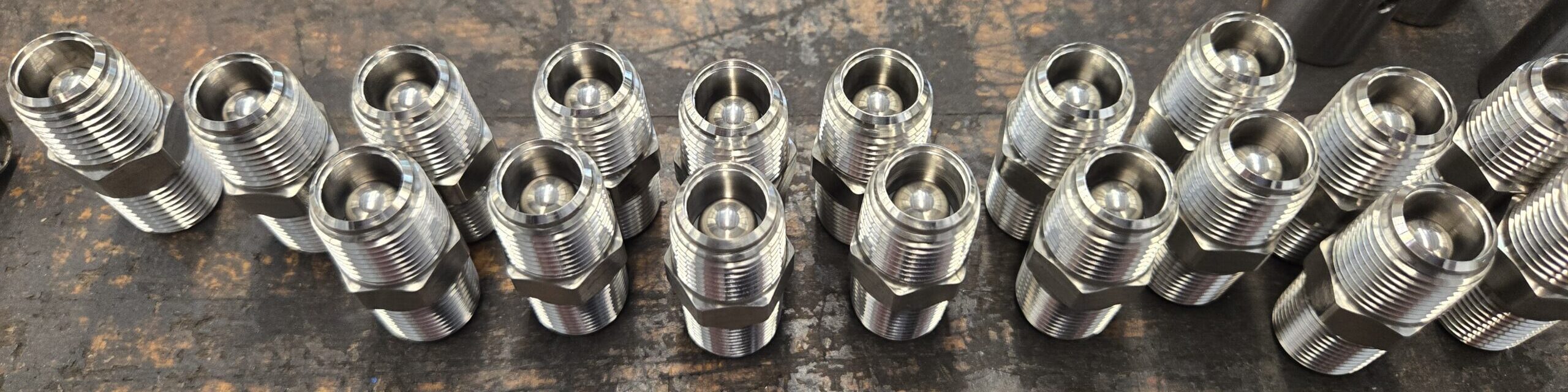

Poppet Spring-Loaded Check Valve

A compact stainless steel poppet check valve for metering pump and injection line applications, available with 2 or 10 PSI cracking pressure.

Built for Demanding Chemical & Injection Systems



Works in Any Orientation

Because the spring actively closes the valve, it is not gravity-dependent. Spring check valves perform consistently in horizontal or vertical installations.

Controlled Cracking Pressure

Each valve requires a specific amount of upstream pressure to open, known as cracking pressure. JAECO valves are available in 2 lb. or 10 lb. options for predictable, repeatable operation.

Compact & Precise Flow Control

Inline spring check valves offer a compact footprint while delivering more controlled, responsive shutoff than non-spring designs, helping maintain metering accuracy.

How an Inline Spring Check Valve Works

A spring check valve uses a spring-loaded internal element (either a ball or a poppet) to control flow direction. In ball-style valves, the spring pushes the ball against the seat to prevent backflow. In poppet-style valves, the spring forces a guided disc against an O-ring to create a tight seal. When upstream pressure exceeds the cracking pressure (2 lb. or 10 lb.), the valve opens to allow flow. When pressure drops or reverses, the spring quickly returns the sealing element to its seat, preventing reverse flow. This pressure-assisted design provides:
  • Fast closing response
  • Minimal leakage
  • Consistent performance in fluctuating systems
Spring-loaded check valves are widely used in chemical injection lines, water treatment systems, agricultural dosing, and industrial processing, where maintaining flow direction and system pressure is critical.
Check valve

Trust JAECO with Your Spring Check Valves

For over 60 years, JAECO Fluid Systems has built dependable, American-made fluid handling equipment designed for long service life and rebuildability. That same commitment extends to our check valves. When you choose JAECO, you get:
  • U.S.-based manufacturing and support
  • High-quality materials designed for chemical compatibility
  • Technical expertise to match valves to your flow and pressure requirements
  • Long-term parts availability and service support
Whether you’re replacing an existing valve or specifying a new metering system, our team helps ensure reliable performance under real-world conditions.

Spring Check Valve FAQs

What is a spring check valve? A spring check valve is an inline valve that uses a spring-loaded ball or poppet to allow flow in one direction and automatically close when pressure reverses. The spring ensures fast shutoff and consistent sealing. What is cracking pressure? Cracking pressure is the minimum upstream pressure required to open the valve. JAECO spring-loaded check valves are available in 2 lb. or 10 lb. cracking pressure options for predictable performance. When should I use a spring-loaded check valve instead of a non-spring design? Spring check valves are ideal when installation orientation varies, fast closing is required, or more precise flow control is needed. Because they are not gravity-dependent, they perform consistently in both vertical and horizontal systems.
